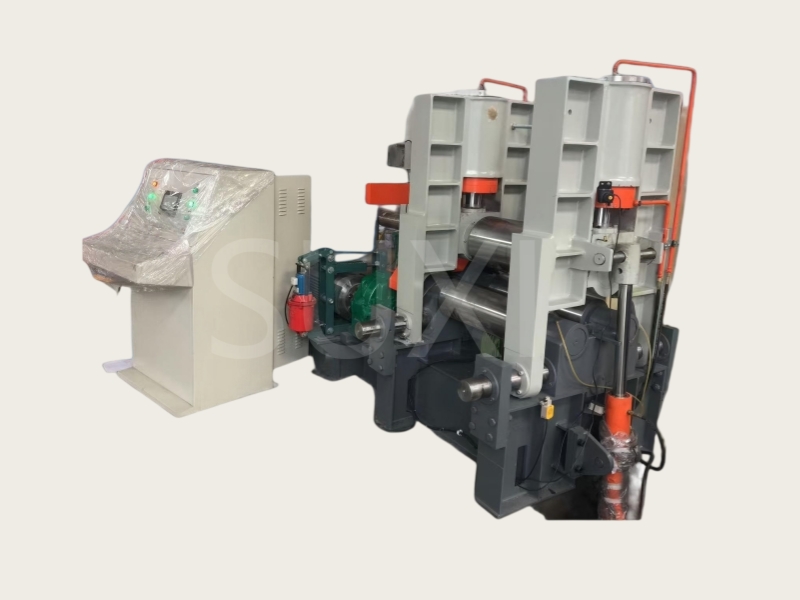

Hydraulic Symmetrical Three-Roll Plate Bending Machine

Model Max bending thickness(mm) Max plate width(mm) Plate yield limit Yielding

Category:

THREE-ROLL PLATE ROLLING MACHINE

postmaster@suximachinery.com

Hotline:+86 18962755651

Get a quote

Model	Max bending thickness(mm)	Max plate width(mm)	Yielding limit of sheet metal(Mpa)	Rolling speed(m/min)	Min. bending diameter(mm)	Diameter of upper roller(mm)	Diameter of lower roller(mm)	Main motor power(kw)
SXW11NC-203000	25	3000	245	4	1200	430	370	30
SXW11NC-252500	25	2500	245	4	1200	370	300	22
SXW11NC-302000	30	2000	245	4	1200	360	290	22
SXW11NC-303000	30	3000	245	4	1200	450	390	30
SXW11NC-403000	40	3000	245	3.5	1600	540	440	45
SXW11NC-503000	50	3000	245	3.5	2000	580	480	55
SXW11NC-603000	60	3000	245	3.5	2400	660	560	75
SXW11NC-703000	70	3000	245	3.5	2800	710	620	90
SXW11NC-803000	80	3000	245	3.5	3200	770	680	90
SXW11NC-903000	90	3000	245	3.5	3600	820	730	110
SXW11NC-1003000	100	3000	245	3.5	4000	860	770	110
SXW11NC-1103000	110	3000	245	3.5	4400	900	810	132
SXW11NC-1203000	120	3000	245	3.5	4800	950	860	132

Related products

CNC Hydraulic Four-Roll Plate Rolling Machine

The W12 CNC four-roll plate rolling mach...

Get a quote

Inclined Four-Roll Plate Rolling Machine

The side rolls of the inclined four-roll...

Get a quote

Slanting Four-Roll Plate Rolling Machine (w12-12x2000)

The side rolls of the slanting four-roll...

Get a quote

Inclined-Line Four-Roll Plate Bending Machine (W12-12x2500)

The two side rolls of the inclined-line ...

Get a quote

Product Inquiry

Please leave your message, we will contact you quickly after receiving it, thank you for your support!

name

mail

Telephone

The product I need

Hydraulic Symmetrical Three-Roll Plate Bending Machine

information

What kind of product do you need?
What's your budget?
What other information do you need to know?

FAQ

What to pay attention to when selecting a rolling machine?

When purchasing a rolling machine, confirm the plate thickness, width, material, and finished cylinder diameter first; choose a four-roll model if no straight edge is required, and a three-roll model if the budget is limited. Determine the mechanical/hydraulic/CNC configuration according to your needs, pay attention to the wear-resistant process of the roller, the equipment tonnage margin, and comprehensively select by combining the workshop site, after-sales service, and maintenance.

How to reduce deflection of symmetrical three-roll bending machine?

To reduce the deflection of the roller of the symmetrical three-roll bending machine, increase the diameter of the upper roll and perform quenching and tempering to improve rigidity. Install auxiliary support rolls at both ends to distribute the pressure. Use progressive rolling in multiple stages to avoid heavy load pressing in a single operation. Select an appropriate hydraulic tonnage capacity to avoid overloading. At the same time, reasonably control the width of the plate to reduce unilateral loading, reduce the bending deformation of the roller, and improve the accuracy of rolling and the service life of the equipment.
