Performance Features

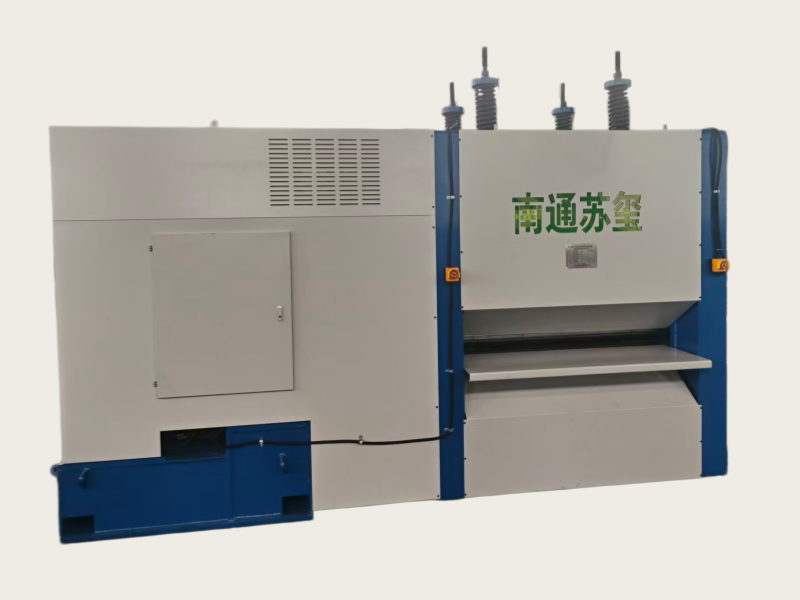

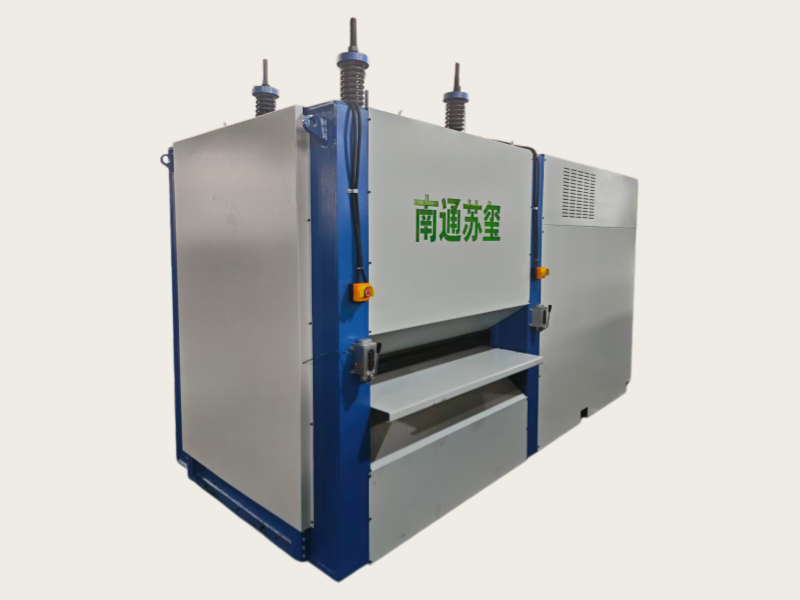

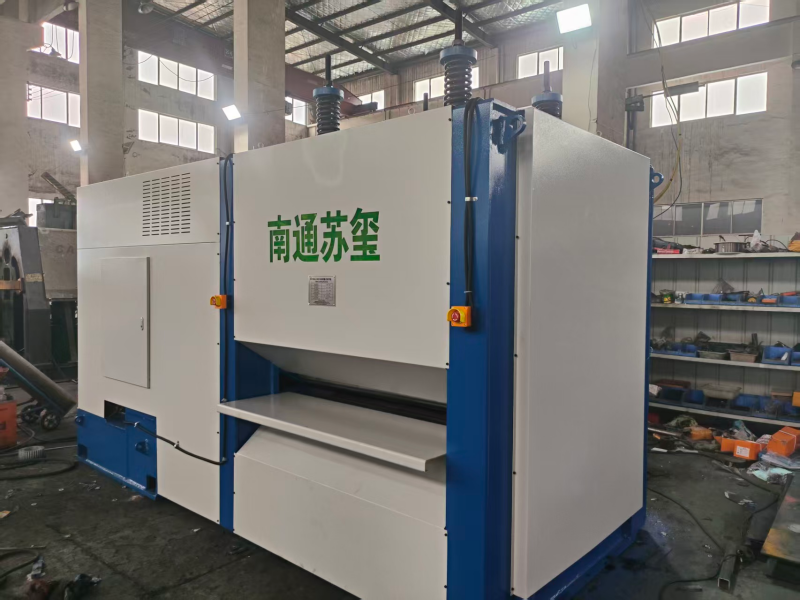

This machine is an upgraded model of the four-high leveler. An additional row of intermediate rolls is installed between the upper and lower rows of leveling work rolls and backup rolls (wheels), forming a roll group structure with three layers on top and three on the bottom, totaling six layers. Through the transition of the intermediate rolls, the supporting force of the backup rolls (wheels) does not directly act on the work rolls, avoiding the phenomenon of backup roll (wheel) marks left on the surface of sensitive materials during operation of the four-high leveler, and protecting the surface condition of the processed material to the greatest extent. It is mainly used for leveling aluminum plates, stainless steel plates, copper plates, non-ferrous metal plates, composite plates of different metals, coated, plated, and ground metal plates, and other plates with high surface requirements. The leveling rolls have uniform force distribution, good structural rigidity, small deflection deformation of the work rolls, and high leveling precision.

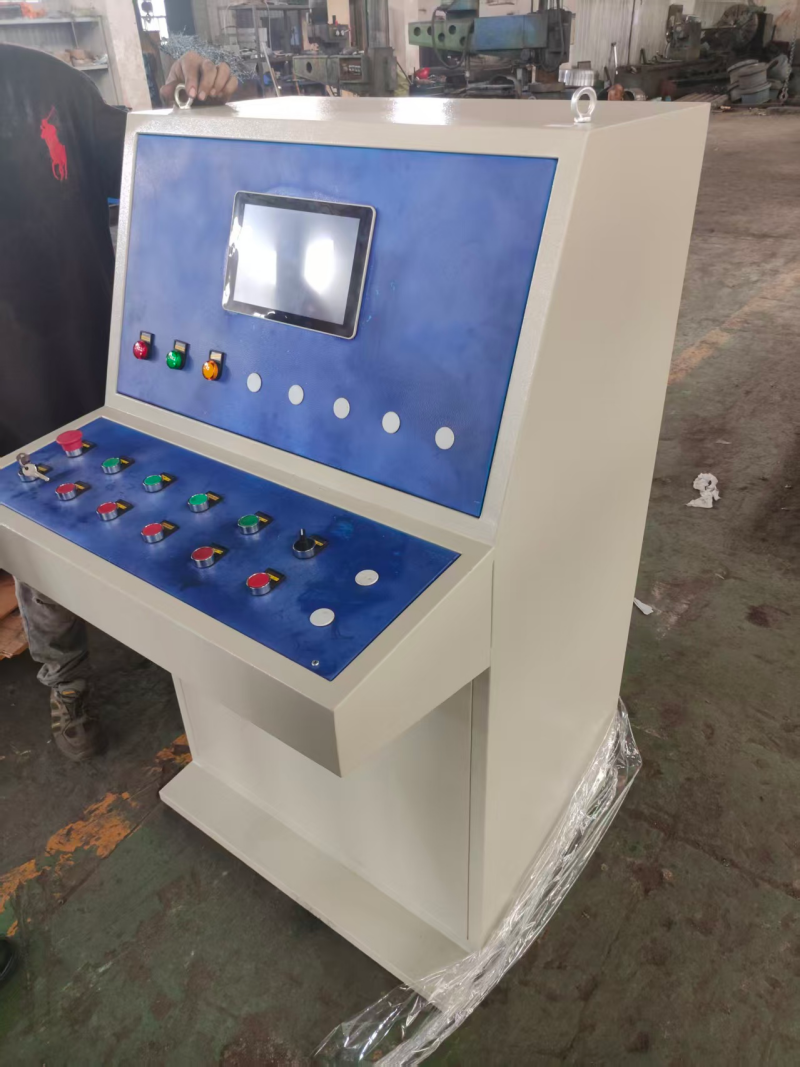

Optional automatic screwdown CNC system and expert system for storing typical workpiece parameters are available.
Main Technical Specifications
本表所列参数，不作为产品检验依据，仅供产品选型参考。如出现与产品实际数据有不一致处，应遵照说明书或双方的技术协议约定。Item Name Unit Optional Range Plate Thickness mm 0.3-1.5 0.4-2.0 0.5-3.0 0.6-4.0 Standard Width mm 800 1000 1300 1600 2000 Number of Leveling Rollers pcs 17-23 Leveling Roller Diameter mm 45-75 Number of Middle Rollers pcs 19-25 Number of Support Roller Groups Group 3-5 校平精度 Leveling precision mm/m2 0.5-1.0 校平速度 Leveling speed mm/min 5-25 主电机功率 Main motor power Kw 15-55
