锥辊卷板机

锥体卷板机工作原理:对称锥形卷板机上棒在两辊子中心对称位置,由液压油缸作用于活塞作垂直升降运动,并由主减速器的末级齿轮带动两滚轮齿轮啮合而作旋转运动,为卷制板提供力矩。一卷板机,规格平整的塑性板在卷板机的三个工作辊(两个下辊.一根上辊)之间,借助上辊的压力和下辊的转动,通过多道连续弯曲(内层压缩变形,中间层不发生变化,外层拉伸变形),产生塑性形变,卷成所需圆锥或圆锥。该机采用厚度小于20mm的卷板。
  • 产品详情
  • 产品介绍

    锥体卷板机工作原理:对称锥形卷板机上棒在两辊子中心对称位置,由液压油缸作用于活塞作垂直升降运动,并由主减速器的末级齿轮带动两滚轮齿轮啮合而作旋转运动,为卷制板提供力矩。一卷板机,规格平整的塑性板在卷板机的三个工作辊(两个下辊.一根上辊)之间,借助上辊的压力和下辊的转动,通过多道连续弯曲(内层压缩变形,中间层不发生变化,外层拉伸变形),产生塑性形变,卷成所需圆锥或圆锥。该机采用厚度小于20mm的卷板。

    我公司研发的数控四辊卷板机控制系统更贴近于国内的本土化实际使用需求,简单易学,文化水平要求低。已成为进口数控卷板机的有力竞争者和替代产品。


    产品图片

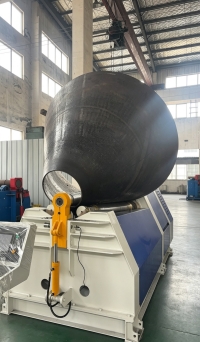

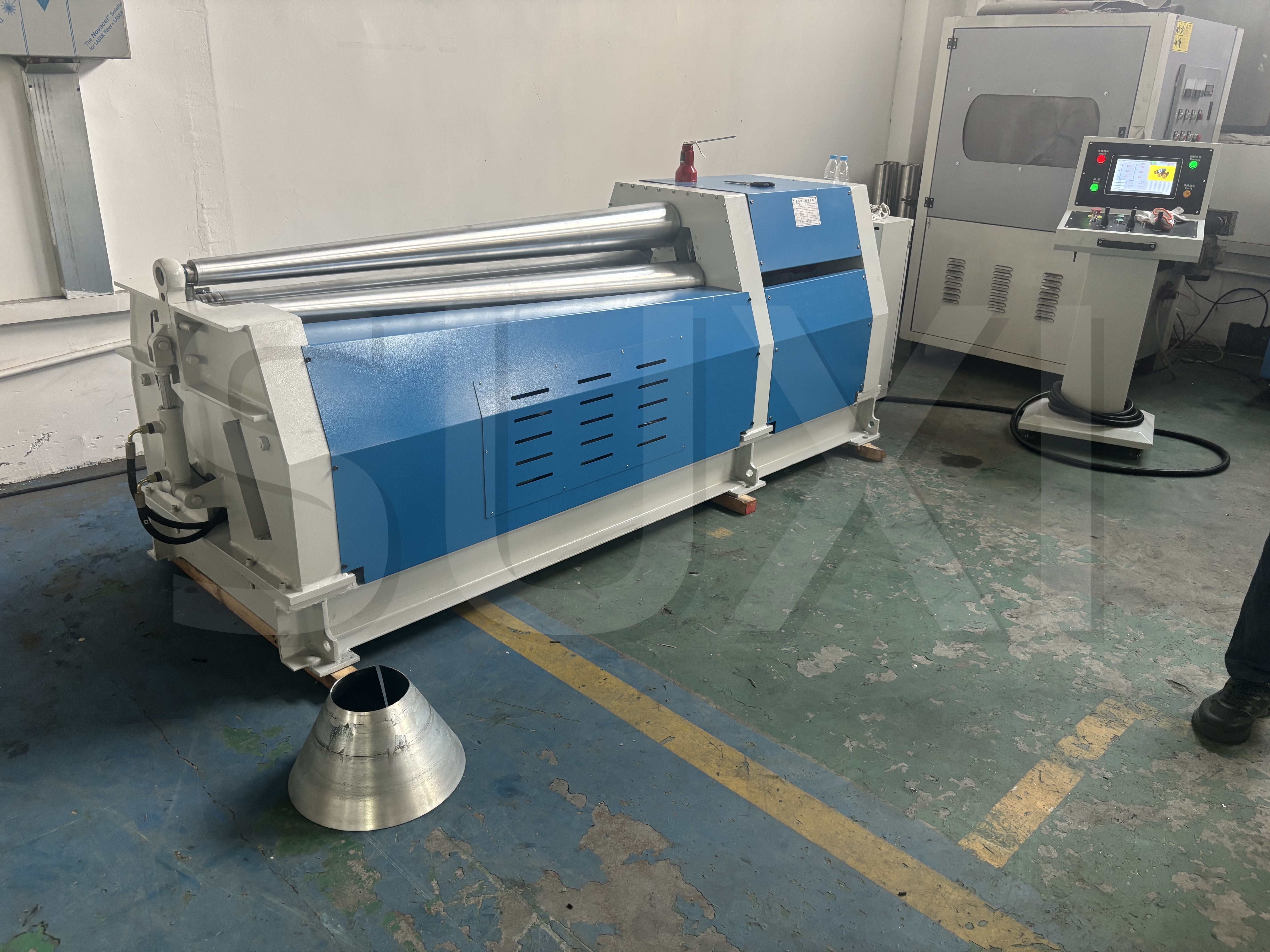

    锥辊卷板机 (21).jpg   锥辊卷板机_副本.jpg


    产品特点

    锥形筒卷板机上辊可采用机械或液压调节,可用于专门卷制锥形产品,制作不锈钢锥形筒、钢板大小头卷制,小直径锥形卷筒,简单、方便,快捷。可根据可户型号订制产品型号。该机广泛应用于精度要求高,如:航空、核电等金属结构件制作业及化工机械、海洋石油平台、输油气水管道等行业。





    技术参数

    规格

    型号

    卷板厚度

     (mm)

    卷板宽度

     (mm)

    上辊直径

     (mm)

    电机功率

    (kw)

    外形尺寸

    (mm)

    SXW12-4X15001-4150014032800x800x1000
    SXW12-4X20001-4200016043400x900x1000
    SXW12-6X20001-6200017043600x1100x1100
    SXW12-6X25001-625001905.54000x1200x1200
    SXW12-8X25002-825002207.54700x1500x1500
    SXW12-12X20003-1220002407.54200x1500x1500
    SXW12-12X25003-122500260114800x1600x1600
    SXW12-16X25003-162500280115000x1700x1700
    SXW12-16X40004-164000370226600x1700x1700
    SXW12-20X2500 3-20 2500340155000x1900x1880
    SXW12-20X32004-20320038018.54600x2200x2200
    SXW12-25X20003-252000340154600x1900x1900
    SXW12-25X25004-25250038018.55100x2200x2200
    SXW12-25X32005-253200420226600x2550x2500
    SXW12-30X25005-302500420226000x2800x2900
    SXW12-30X32005-303200450306800x2900x2900
    SXW12-40X25006-402500520376500x3000x3000
    SXW12-40X32006-4032005502x227100x3000x3000
    SXW12-50X25008-5025005802x226500x3000x3000
    SXW12-50X32008-5032006202x307100x3000x3000
    SXW12-60X320010-6032006602x377200x3300x3500
    SXW12-80X320016-8032008002x457500x3500x3800
    SXW12-100X320020-10032008602x558100x3800x3800
    SXW12-120X320020-12032009202x638200x4000x4000
    SXW12-150X320025-140320010802x758600x5000x5000
    SXW12-160X320030-160320011602x758600x5200x5200
    SXW12-180X320030-180320012202x908800x6000x5800


相关产品

W12数控四辊卷板机配备可编程式数控系统...

W12数控四辊卷板机配备可编程式数控系统...

全自动四辊卷板机生产线是在四辊卷板机卷板...

斜线四辊卷板机的两侧辊作倾斜直线升降运动...

产品询价

敬请留下您的留言内容,我们收到后会迅速与您联系,感谢支持!

锥辊卷板机
  • 你需要什么样的产品?
  • 你预算有多少?
  • 你还需要了解哪些其他信息?

常见问题

卷板机选择注意什么?


选购卷板机先确认板材厚度、宽度、材质与成品筒径;需无直边选四辊,预算有限选三辊。按需确定机械 / 液压 / 数控配置,留意辊筒耐磨工艺、设备吨位余量,同时结合车间场地、售后维保综合挑选。

如何减少对称式三辊卷板机挠变?


减少对称三辊卷板机辊筒挠变,可加大上辊直径并做调质淬火提升刚性,加装两端辅助支撑托辊分散压力。采用分次渐进滚压,避免单次大载荷下压;选型预留充足液压吨位,杜绝过载。同时合理控制板材宽度,减少单边偏载,降低辊身弯曲变形,提升卷圆精度与设备寿命。
